Catalogue des appareils cinématographiques de la Cinémathèque française et du CNC

Type de l'appareil

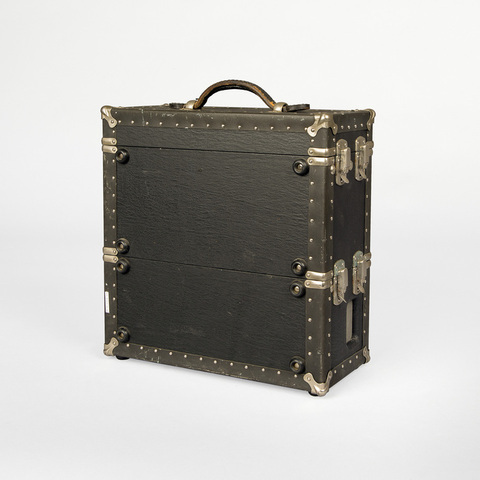

enregistreur magnétique portable 16 mm perforé (bobines de 400 pieds) avec amplificateur séparé, les deux appareils en caisse avec poignée ; vu mètre ; moteur électrique incorporé

Auteurs

Informations non disponibles

Fabricants

Magnasync Corporation
North Hollywood, 5546 Satsuma Avenue, California

Utilisateurs

Informations non disponibles

Distributeurs

Magnasync Corporation
North Hollywood, 5546 Satsuma Avenue, California

Sujet du modèle

Informations non disponibles

Objectif

Informations non disponibles

Taille de l'objet

Ouvert :
Informations non disponibles

Fermé :
Longueur : 19 cm
Largeur : 40 cm
Hauteur : 43 cm

Diamètre :
Informations non disponibles

Taille de la boîte de transport

Informations non disponibles

Remarques

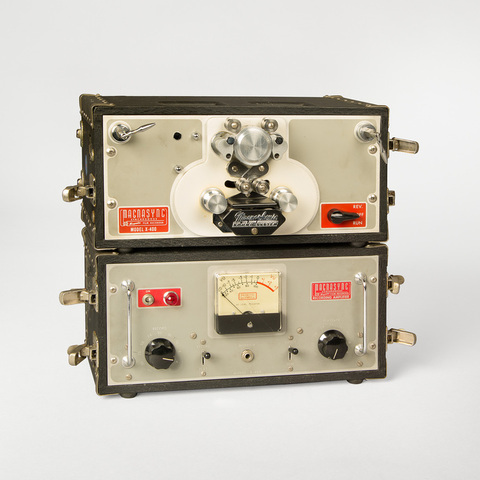

Marques : "Magnasync Synchronous Magnetic Film Recorder Model X - 400" ; "Magnaphonic Sound System" ; "Magnasync Synchronous Magnetic Film Recorder Recording Amplifier".

"X - 400 Series Recorders. 16mm only, synchronous magnetic film. X - 400 type 1 portable. The X - 400 is a complete synchronous 16mm magnetic film recording and reproducing channel, professional in every detail. This is the answer for the independent producer whose budget had previously prevented him from taking advantage of sprocketed double-system production. This unit is also designed around the basic "Synkinetic" motion principle that through the years has given meaning to the Magnasync pledge - Quality, Economy, Integrity ! Features : - Professional, heavy-duty construction. - Bias indication, readout. - Simple projector interlock. - Instantaneous "Film-Direct" monitoring. - Simplicity of operation. - Extreme lightweight portability. Attractively housed in break apart case. - Low power consumption. - SMPTE standard performance. Specifications : Film type, Tracking, Model Numbers : 16 mm, Edge Track, Model X - 400 E-1 ; 16mm, Center Track, Model X - 400 C-1 ; 16mm, Release Print, Model X - 400 R-1. Film capacity : standard 400 ft reels ; accessory extension arms may be used to accomodate 1200 ft reels. Rewind : 4:1 ratio reel to reel or synchronous reverse through sprocket drive. Drive motor : salient pole synchronous. Standard unit furnished with 115 volt, 60 cycle, single phase, 24 fps drive motor. Drive motors with other voltages, cycles and phases available including 25 fps film speed at 50 cycles at no additional cost. Frequency response : 50 to 10 000 cps, 2 db. Distortion : less than 2% total harmonic. Signal to noise ratio : 56 db. Flutter and Wow : 0.18 % maximum rms overall. Inputs : High gain microphone (strapped for 50 ohms standard. Can easily be changed to 250 ohms or 500 ohms). Cannon X-L connector. Hi Impedance input. Output : Cathode follower (6 volt into 600 ohms). Monitor : 3 1/2 VU meter monitors input signal. Monitor output will feed any impedance above 600 ohms. Monitor direct through amplifier or switch to Film Monitor for simultaneous playback from film. Power consumption : 60 watts, including amplifier and drive motor" (Catalog N° S-102, Synchronous Magnetic Film, Sound Recording Systems, Recorders, Reproducers, Interlocks, Accessories for Motion Picture Producers..., Hollywood, Magnasync, s.d., p. 6).

Larry Lansburgh a reçu un Academy Award pour le film Wetback Hound (1957) en utilisant le X- 400 Magnasync (American Cinematographer, juin 1958, p. 342).

Bibliographie

Catalog N° S-102, Synchronous Magnetic Film, Sound Recording Systems, Recorders, Reproducers, Interlocks, Accessories for Motion Picture Producers..., Hollywood, Magnasync, s.d., p. 6.

American Cinematographer, mars 1957, septembre 1957.

American Cinematographer, juin 1958, p. 342.
