Catalogue des appareils cinématographiques de la Cinémathèque française et du CNC

Type de l'appareil

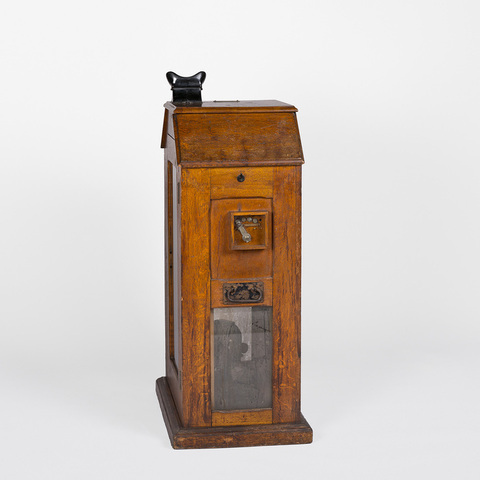

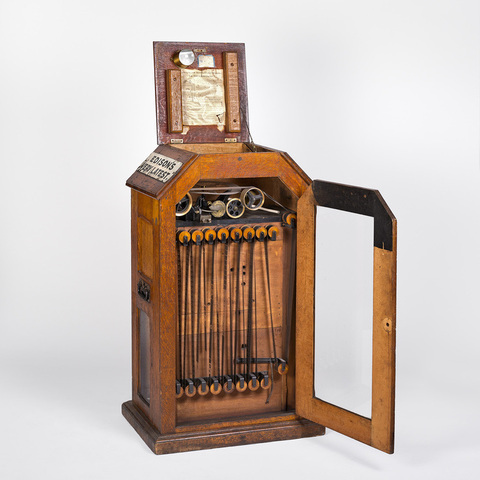

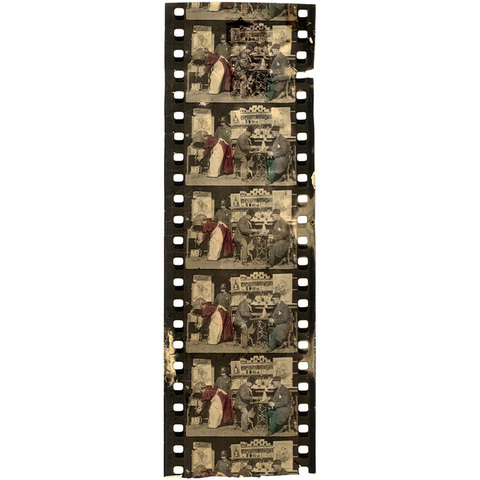

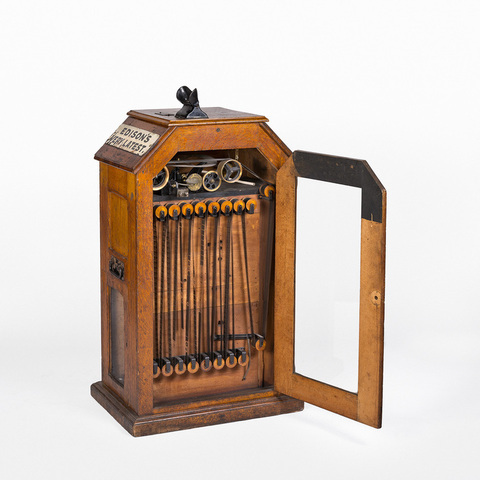

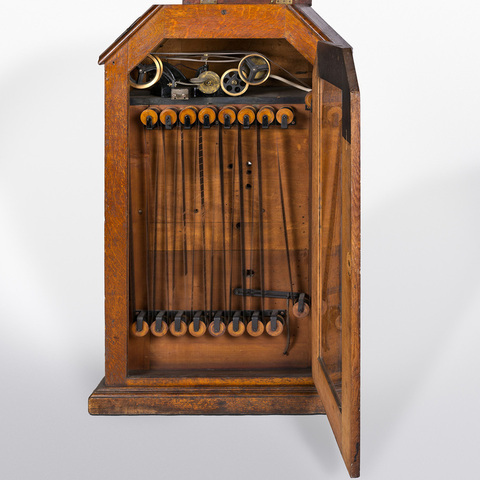

film 35 mm perforé de 15 mètres de longueur environ monté en boucle, se déroulant de façon continue sur 19 rouleaux-guides feutrés ; obturateur 29,2 cm Ø horizontal à fenêtre ; ampoule électrique avec réflecteur et verre dépoli pour éclairer les images ; un débiteur denté ; moteur électrique incorporé ; phonographe Edison incorporé pour fonctionner en même temps que le défilement du film ; optique pour grossir les images ; viseur en fonte pour regarder le film ; variateur de vitesse ; poignées

Auteurs

Dickson William Kennedy Laurie
West Orange, New Jersey

Edison Thomas Alva
New Jersey, Orange

Fabricants

Edison Manufacturing Co
New Jersey, Orange

Utilisateurs

Dickson William Kennedy Laurie
West Orange, New Jersey

Edison Thomas Alva
New Jersey, Orange

Distributeurs

Continental Commerce Company
Londres

Sujet du modèle

Informations non disponibles

Objectif

condensateur 6,5 cm Ø

Taille de l'objet

Ouvert :
Informations non disponibles

Fermé :
Longueur : 69 cm
Largeur : 46.5 cm
Hauteur : 123 cm

Diamètre :
Informations non disponibles

Taille de la boîte de transport

Informations non disponibles

Remarques

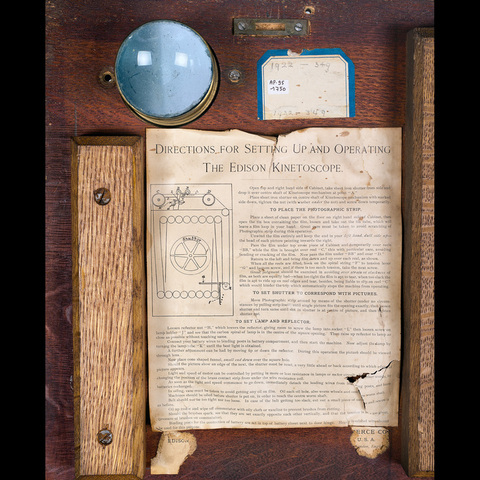

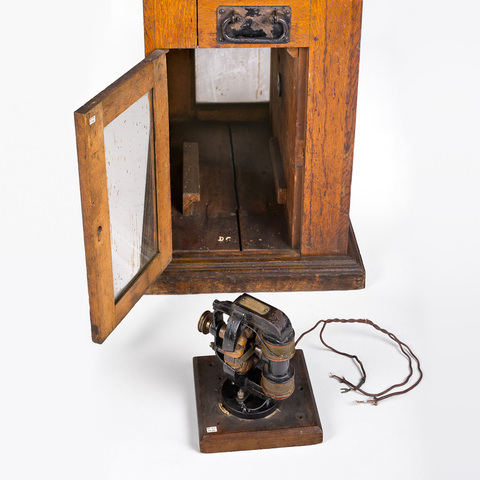

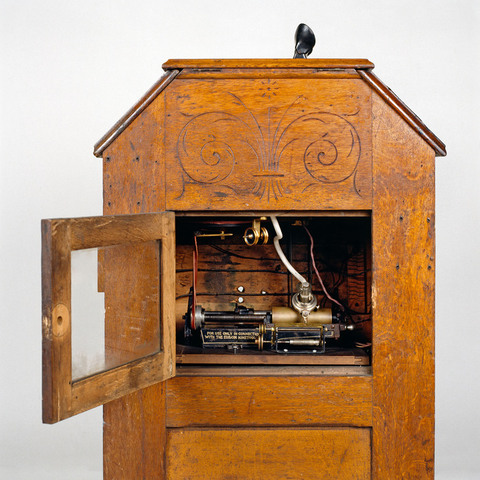

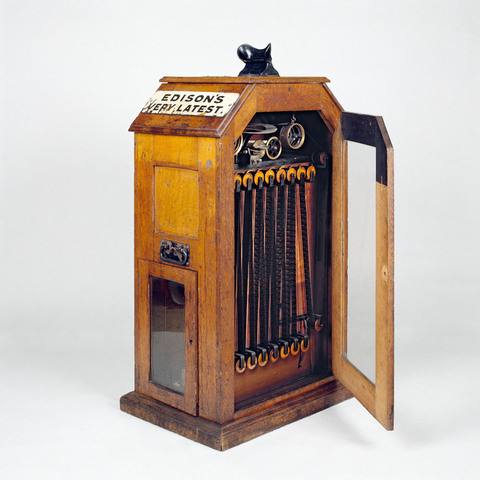

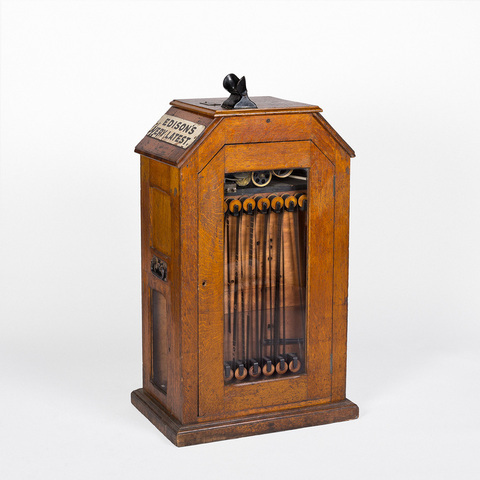

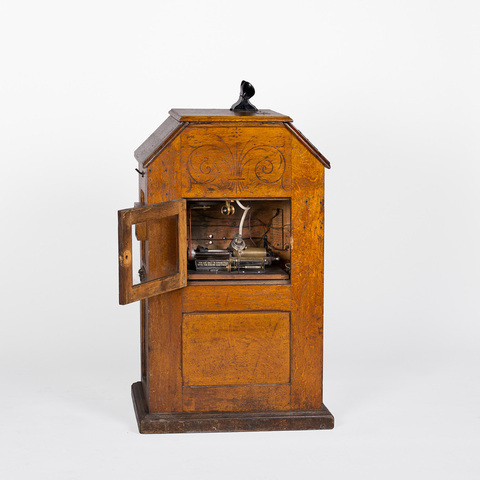

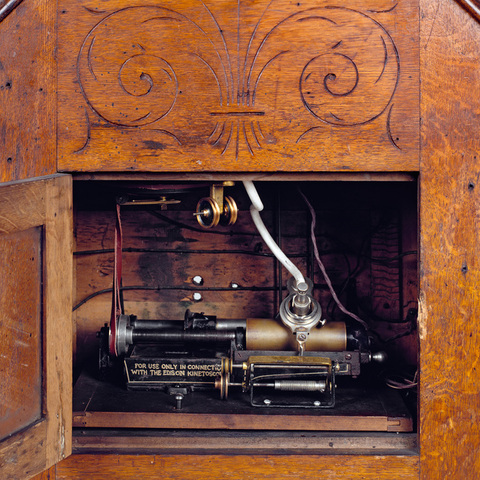

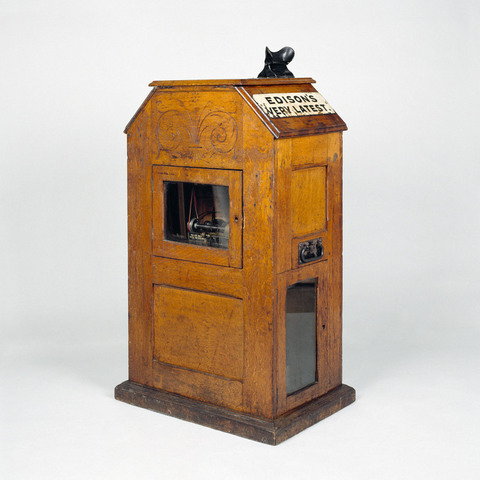

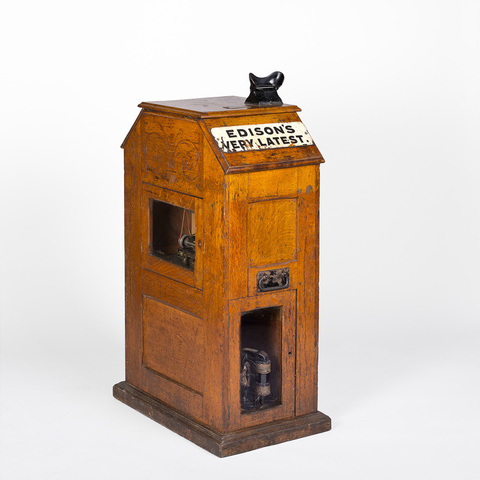

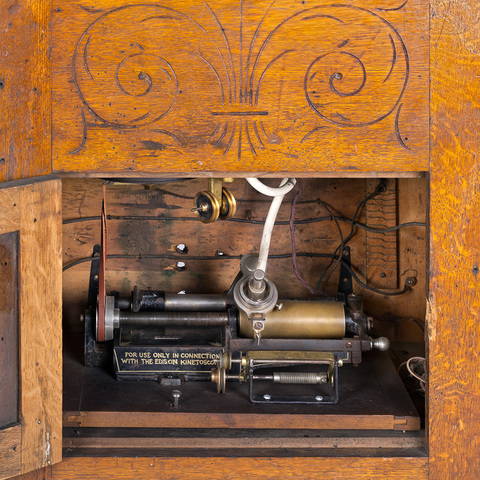

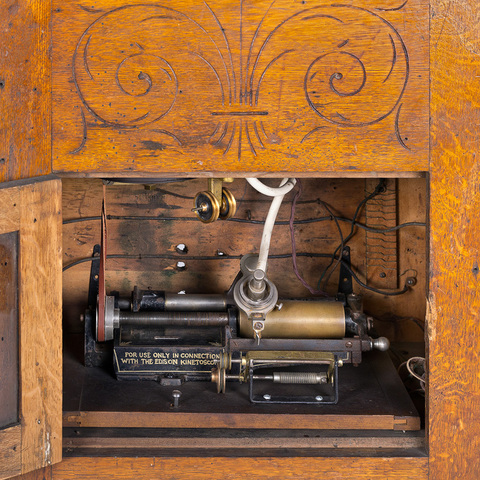

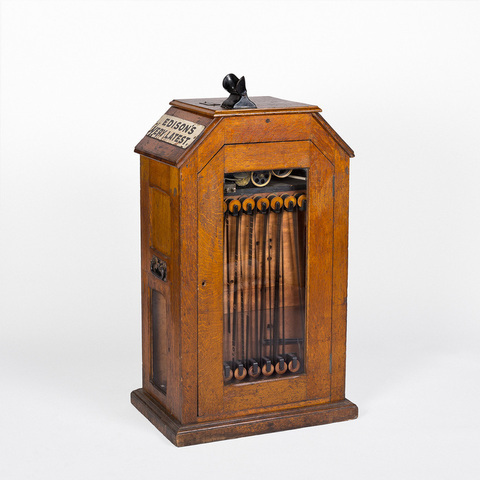

Etiquette métallique sur le couvercle : "Edison Kinetoscope Manufactured by Edison MFG Co., Orange, N.J. USA. N° 69". Pancarte métallique : "Edison's very latest". Au revers du couvercle, mode d'emploi collé : "Directions for setting up and operating the Edison Kinetoscope". Etiquette en papier, arrachée, de la "Continental Commerce Company, London, England". Phonographe n° 1669 marqué "For use only in connection with the Edison Kinetoscope". Moteur électrique marqué "Manufactured by Edison MFG. Co. Orange N.J. USA" et "Trade Thomas A. Edison Mark".

Exemplaire n° 69 très précieux, transformé en "Kinetophone" (Kinetoscope avec phonographe) au cours de l'année 1895. Cet appareil vient de la première série fabriquée des kinetoscopes, sans le système monétaire. On connaît actuellement trois exemplaires (plus ou moins complet) du kinetophone : dans une collection privée de Sydney (Australie), au Science Museum de Londres, et celui de la Cinémathèque. Les kinetoscopes sont un peu plus nombreux : au moins six exemplaires aux Etats-Unis (George Eastman House, Rochester ; Academy of Motion Picture Arts and Sciences Library, Los Angeles ; American Society of Cinematographers, Hollywood ; Henry Ford Museum, Dearborn ; et chez des collectionneurs privés). Il en existe aussi un exemplaire au Science Museum de Londres, au Technisches Museum de Helsingor au Danemark, à l'Institut Lumière de Lyon ; celui du CNAM est une contrefaçon réalisée par l'Anglais Robert William Paul en 1895.

Collection Will Day. "113. One Edison's Kinetoscope. This is the original Kinetoscope brought to England in 1893 and shown at their offices in Old Broad Street, London, by Trajidis and Georgiades. The number of this instrument is 69, and it is complete with original electric motor film, viewing lens mechanism and gallery of rollers for film manipulation" (Will Day, Illustrated Catalogue of the Will Day Historical Collection, Londres, s.d., [1934], p. 19).

"Standard Edison Kinetoscope, $ 200.00. This is for one machine complete in a cabinet of oak, 49 inches high, base 30 x 21 inches. It does not include any films or batteries which are extra. This machine takes a film 48 feet long. Gross weight, packed for export, 225 lbs., net weight, 125 lbs. Standard Edison Kinetoscope, $ 250.00. Kinetoscope and Phonograph combined in one cabinet. This machine is the same size as the one above, but weights 65 lbs. more, the gross being 290 lbs. and net, 190 lbs. It does not include any films, musical cylinders or batteries. Large Edison Kinetoscope, $ 250.00. This size takes a film 148 ft. long and is used principally for glove contests. It is encased in a cabinet of oak 49 inches high, base 30 x 60 inches. Gross weight packed for export, 325 lbs. net weight, 225 lbs. It does not include any films or batteries. Large Edison Kinetophone, $ 300.00. This machine is the same size as the one above, weight 390 lbs. gross, 290 lbs. net. It does not include any films, Musical cylinders or batteries. Class M. Edison Phonograph and fittings for changing a kinetoscope into a kinetophone, 60.00. Travelling and exhibition outfits. Outfit n° 1. Standard Edison Kinetophone. Four type 7 D. storage batteries. Six films 48 feet long. Six musical records. Price $ 350.00. Outfit n° 2. Standard Edison Kinetoscope. Four type 7 D storage batteries. Six films 48 feet long. Price $ 300.00.Outfit n° 3. Standard Edison Kinetophone. Four type 7 D. storage cells. Four extra type 7 D. storage cells. Ten films 48 feet long. 1 set spare parts. 1 film repairer. 10 musical records. 20 extra musical records. Price $ 550.00. Outfit n° 4. the same as n° 3 except a kinetoscope in place of a kinetophone and no musical records. Price $ 475.00. Outfit n° 5 for an exhibition parlor. 5 standard kinetophones. 20 type E. 7 storage batteries. 20 extra type E. 7 storage batteries (to be charging while the other set is in use). 50 films 48 feet long. 50 musical records. 100 extra musical records. 1 large portrait of Mr. Edison. 1 film repairer. 1 set of spare parts for five machines. Price $ 2800.00. Outfit n° 6 for an exhbition parlor. The same as n° 5 except kinetoscopes in place of kinetophones and no musical records. Price $ 2350.00. Batteries. The kinetoscope and kinetophone run best by storage batteries. Each machine taking 4 cells to run it with an output of 8 amperes at 8 volts. If you wish to operate your machines continuously, you will need to purchase two sets of batteries that one set may be being recharged while the other set is in use. We give prices on 3 sizes of different hours capacity for running. Four cells type D. 7 storage battery 75 ampere hours, $ 40.00. Four cells type E. 5 storage battery 100 ampere hours, $ 50.00. Four cells type E. 7 storage battery 150 ampere hours, $ 75.00. [...] List of harmonized films and musical records. Films each $ 11.00. Records, $ 1.00 each" (Price list Edison Kinetoscopes and Kinetophones with parts and supplies, New York, F.M. Prescott, Edison Building, 44 Broad Street, s.d. [1895]).

Bibliographie

William Kennedy Laurie Dickson and Antonia Dickson, The Life and Inventions of Thomas Alva Edison, London, Chatto & Windus, 1894.
Price list Edison Kinetoscopes and Kinetophones with parts and supplies, New York, F.M. Prescott, Edison Building, 44 Broad Street, s.d. [1895].
Will Day, Illustrated Catalogue of the Will Day Historical Collection, Londres, Will Day, s.d., [1934].
Gordon Hendricks, The Edison Motion Picture Myth, Berkeley and Los Angeles, University of California Press, 1961.
Gordon Hendricks, The Kinetoscope, America's First Commercially Successful Motion Picture Exhibitor, New York, The Beginnings of the American Film, 1966.
Ray Phillips, Edison's Kinetoscope and its Films, Wiltshire, England, 1997.
Paul Spehr, The Man who made Movies : W.K.L. Dickson, Herts, John Libbey, 2008.
