Caméra film 35 mm

N° Inventaire : AP-16-3104

Collection : La Cinémathèque française

Catégorie d'appareil : Prise de vues cinématographiques

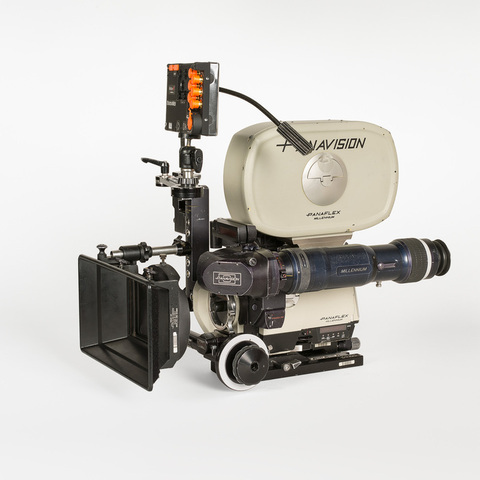

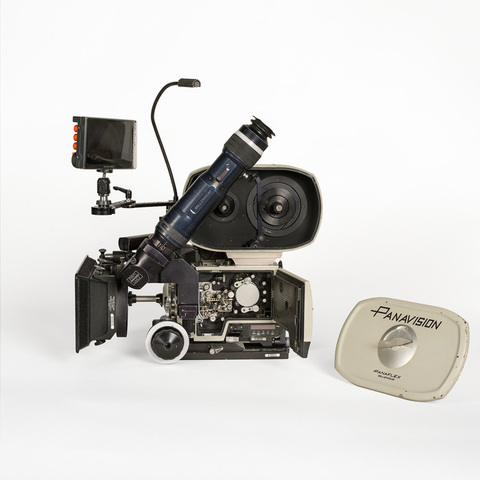

Nom du modèle : Panavision Panaflex Millennium PFX - M

Numéro de fabrication : Ser. n° PFX 108 - M

Lieu de fabrication : Los Angeles, Californie, Etats-Unis

Année de fabrication : 1999

Fiche détaillée

Type de l'appareil

entraînement du film 35 mm (ou Super 35 mm, 3-perf) par deux griffes et contre-griffes ; débiteur denté ; variateur de vitesse à quartz 3 - 50 images par seconde ; obturateur réglable 11,2 - 180° pendant la prise de vues ; double moteur pour obturateur et mécanisme ; viseur électronique Panaglow ; magasin 120 m. ; éclairage Panalens lite ; compteur ; compendium ; support pour moniteur ; contrôle à distance ; configuration studio, épaule ou steadicam

Auteurs

Informations non disponibles

Fabricants

Panavision Inc.
Los Angeles, California

Utilisateurs

Informations non disponibles

Distributeurs

Panavision Inc.
Los Angeles, California

Sujet du modèle

Informations non disponibles

Objectif

Informations non disponibles

Taille de l'objet

Ouvert :
Informations non disponibles

Fermé :
Longueur : 56 cm
Largeur : 39 cm
Hauteur : 55 cm

Diamètre :
Informations non disponibles

Taille de la boîte de transport

Informations non disponibles

Remarques

Marques : "Panavision Millennium" ; "Mfd by and prop. of Panavision Los Angeles CA USA".

"Panaflex Millennium Camera - PFX - M. The Millennium exemplifies Panavision's tradition of excellence in 35 mm film camera design. This lightweight studio quiet camera converts easily into hand held or Steadicam configuration, and as with all previous Panaflex 35 mm film cameras, it is compatible with all Panavision 35 mm lenses and accessories. The Millennium offers many new features designed to speed up film production, including new 400 foot lightweight composite magazines with full reversing motors top or rear mountable for studio or hand held configurations and a completely detachable optical viewfinder for quick conversion to Steadicam mode or remote crane operation. It features the standard Panaglow illuminated frame lines and an adjustment control for Panaglow brightness. The camera features both a short viewfinder for handheld use for either left or right eye viewing, and a telescoping viewfinder for a variety of shooting situations. Image size, focus, and brightness remain the same throughout the entire range of the telescoping viewfinder, which includes the standard images magnifier found on other Panavision medium and long eyepieces. Panavision offers a wide variety of ground glasses for the Millennium in virtually every format (anamorphic or spherical), including Super 35. The Millennium is available in 3-perf, or 4-perf configurations to enable significant savings in the film costs without compromising image quality. The camera has a crystal controlled speed range of 3-50 fps forward and reverse in 1/1000 frame increments. A variable in-shot adjustable motorized shutter range of 11,2-180 degrees, dual registration pins, and dual pull down claws make this one of the quietest film cameras available. The standard Millennium Advanced Video Tap (MAV) - available for both PAL and NTSC - delivers flicker free filming at all available speeds and features easy user adjustments, auto gain, ND 0.6 filter, manual iris, frame lines & character generator, freeze and compare picture modes, RGB output for on-set compositing and enhanced picture, film camera speed and footage display, two composite video outputs, and electronic de-anamorphoser. A pivoting double-sided display shows camera speed, film footage, and shutter angle on one side, with an operator side status indicator showing speed and footage. Other camera features include a 3-position de-anamorphoser switch (spherical, anamorphic and closed), two contrast-viewing filters (0,6 and 0,9 neutral density), a behind the lens filter slot, and built in camera body and eyepiece heaters. The Millennium comes with Panavision's standard package of accessories. Panavision offers a wide variety of additionnal accessories based on the needs of the production. Specifications : 3-50 frames per second. 11,2 - 180 motorized shutter. Left/right eye positionable hand held eyepiece. Telescoping extension eyepiece. Viewing system detaches quickly for Steadicam conversion. Flicker free advanced video assist. Modular follow focus. Hand held remote for camera on/off and speed/shutter control. Fully adjustable hand grip assembly. Multiple camera status displays. 400' and 1000' lightweight magazines with full reversing motors" (publicité Panavision, s.d.).
