Catalogue des appareils cinématographiques de la Cinémathèque française et du CNC

Type de l'appareil

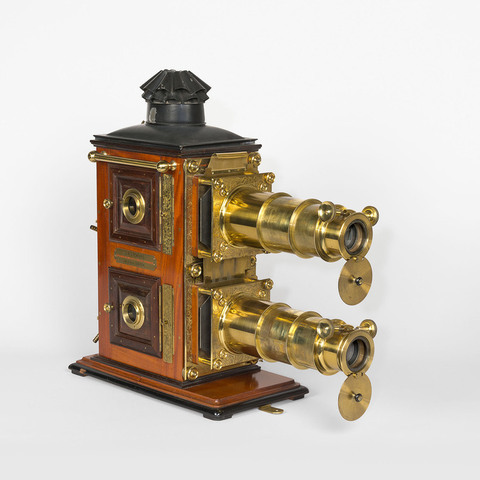

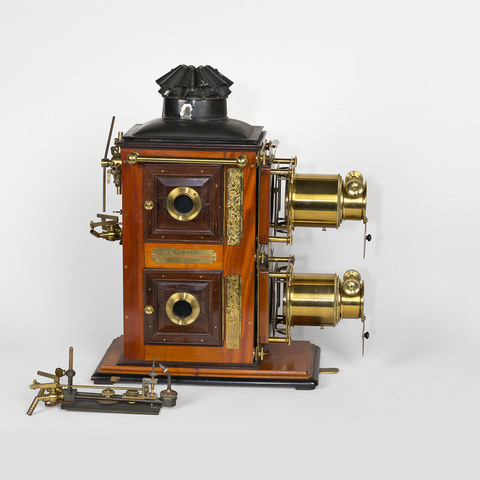

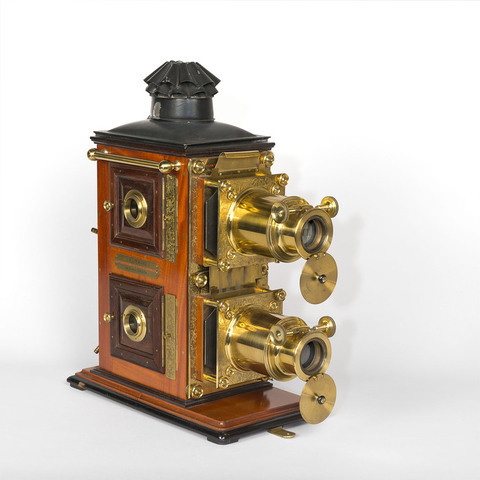

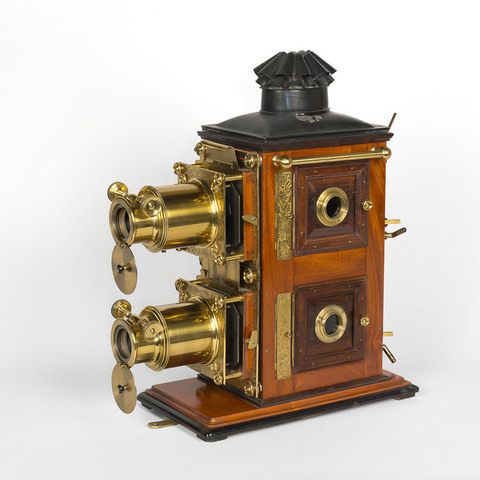

lanterne à deux étages, corps en acajou verni ; deux tubes optiques télescopiques en cuivre verni, objectifs à crémaillère avec loquets ; base en bois ; deux portes à hyblots de chaque côté de la lanterne ; ouvertures à l'arrière ; intérieur blindé ; cheminée ; volets d'aération ; rideau ; passes-vues à ressorts ; deux passe-vues en bois Robert Beard avec glissières laiton

Auteurs

Informations non disponibles

Fabricants

James Henry Steward
Londres, 406, Strand

Utilisateurs

Informations non disponibles

Distributeurs

James Henry Steward
Londres, 406, Strand

Sujet du modèle

Informations non disponibles

Objectif

deux condensateurs 11,5 cm diamètre et deux objectifs 6 cm diamètre 13 inch

Taille de l'objet

Ouvert :
Informations non disponibles

Fermé :
Longueur : 54 cm
Largeur : 24.5 cm
Hauteur : 63 cm

Diamètre :
Informations non disponibles

Taille de la boîte de transport

Informations non disponibles

Remarques

"This lantern has been in the same family since it was purchased in the 1880s. It is in totally original condition and comes complete woth limelight illuminants, a brass sliding curtain, carrying case, projection table and a host of accessories. The dissolve tap and piping are the only missing pieces. The accessories include interchangeable lenses, Beards Self Centring slide carriers, Carpenter & Westley registration slides and various illuminant pieces" (Mike Smith, e-mail, 17 février 2009). Une enveloppe se trouvait dans le tiroir de la table : elle est adressée à "E. B. Mounley [ou Mounsey], Esq. Bank, Darlington" et porte la date de 1885.

"J. H. Steward's A 1 Standard Bi-Unial Lantern, of highest finish, for oxy-hydrogen light, superior mahogany body, with four moulded doors, brass doors at sides of lantern for the insertion of tinters, and producing special effects, brass mounted dark glasses, bar handles for lifting by, brass stages and adjusting plates of extra quality, stone curled and lacquered, three draw telescopic fronts, improved rackwok curtain shutter with supplemental slide, so as to be always in the lantern . The condensers are 4 1/4 inch diameter of very fine quality. The front lenses consist of special high class combination lenses (achromatic and corrector) of about 6 inches equivalent focus, and three extra achromatic lenses in separate tube mounts, giving, separately and by combination, the same size picture at seven different distances from the screen. These lenses are mounted in tubes to pull out complete from the rackwork focussing tube, and the advantage of this is that they can be rapidly changed during an exhibition, and thus permit the size of an effect, figure, or statue to be reduced to be reduced or increased at will. Improved mixed gas jets, with mechanical adjustements for perfectly centring the light, universal dissolver, improved adjusting stages and stops for perfect registration of slides, flap shutters to fronts. Price complete in superior casen with rising board, £44, 10" (Catalogue (Part V.) J. H. Steward's Catalogue of Improved Optical Lanterns with Electric, Lime or Oil Lights, Dissolving Views, Effect Slides, Photographs, Patent Arc Lamps, Powerful Limelight Jets, Steward's Improved Registered Triple Lantern, London, J. H. Steward, Optician to the British and Foreign Governments, the Universities and Colleges of England, America, Russia, and the National Rifle Associations by Appointment, 406, Strand ; 457, West Strand, W.C. ; 7, Gracechurch St., E.C., London, s.d., c. 1900, p. 22).

Bibliographie

Optical Magic Lantern Journal, janvier 1892 ; septembre 1892 ; décembre 1892 ; décembre 1896.
Catalogue (Part V.) J. H. Steward's Catalogue of Improved Optical Lanterns with Electric, Lime or Oil Lights, Dissolving Views, Effect Slides, Photographs, Patent Arc Lamps, Powerful Limelight Jets, Steward's Improved Registered Triple Lantern, London, J. H. Steward, Optician to the British and Foreign Governments, the Universities and Colleges of England, America, Russia, and the National Rifle Associations by Appointment, 406, Strand ; 457, West Strand, W.C. ; 7, Gracechurch St., E.C., London, s.d., c. 1900, p. 22.
