Caméra film 35 mm

N° Inventaire : AP-12-2775

Collection : La Cinémathèque française

Catégorie d'appareil : Prise de vues cinématographiques

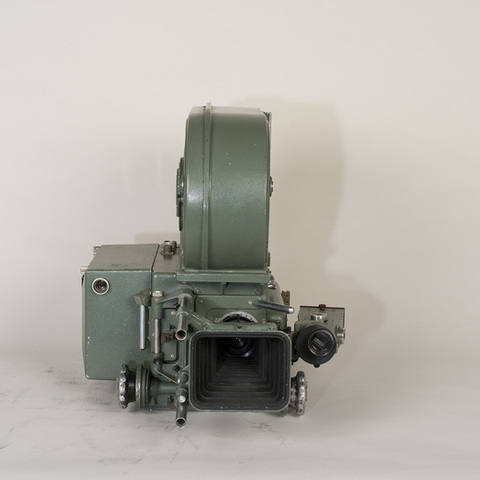

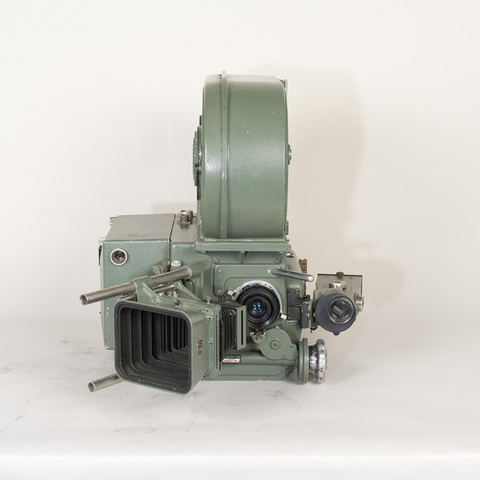

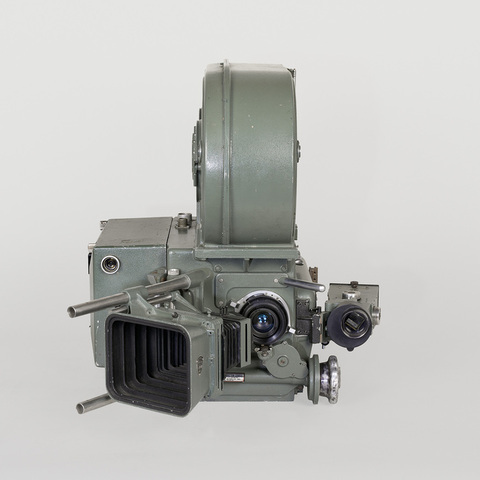

Nom du modèle : Mitchell BNC R

Numéro de fabrication : n° 321 ; viseur n° 2405 ; compendium n° 312

Lieu de fabrication : Glendale, California, Etats-Unis

Année de fabrication : 1967

Brevet : John E. Leonard, USP n° 1 297 704, déposé le 20 avril 1917, délivré le 18 mars 1919, "Finder in combination with camera-shift... +

Fiche détaillée

Type de l'appareil

entraînement du film 35 mm par deux griffes et deux contre-griffes ; un débiteur denté ; dispositif pour fondu ; moteur électrique incorporé 12, 16, 24, 25, 32 images/seconde ; magasin débiteur et récepteur 1000 pieds sous blimp ; visée reflex avec prisme pour visée anamorphique ; viseur extérieur avec correcteur de parallaxe ; compendium avec porte filtre ; compteur de pieds ; compteur d'images

Auteurs

Informations non disponibles

Fabricants

Mitchell Camera Corporation
Hollywood, California

Hill Production
Hollywood, Highland Av., Californie

Utilisateurs

Informations non disponibles

Distributeurs

Cinema Product Developement
Los Angeles, California

Sujet du modèle

Informations non disponibles

Objectif

35 mm serial n° 988 LF

Taille de l'objet

Ouvert :
Informations non disponibles

Fermé :
Longueur : 85 cm
Largeur : 55 cm
Hauteur : 60 cm

Diamètre :
Informations non disponibles

Taille de la boîte de transport

Informations non disponibles

Remarques

Marques : sur la caméra "Mitchell BNC 321" ; sur le viseur "Mitchell Made in USA Camera Corp. Grendale, Calif. n° 2405 Model BNC" ; sur le compendium "N° 312 model BN 35" ; à l'intérieur "Cinema Product Developement Los Angeles California" ; sur le moteur "Hill Production Service 1139 N. Highland Av. Hollywood Calif.".

"The first BNC was sold to Samuel Goldwyn Studios on August 17, 1934. However, the first major sale of the BNC was not until 1938, when Warner Brothers bought ten cameras. The second major purchase was not until 1947, when Russia bought fourteen cameras. No BNC cameras were built during World War II, but the first two postwar BNCswere sold to General Service Studios in Hollywood in 1946, and Warners purchased an additional eight cameras in 1947. Many of the BNC models were later converted by the factory to reflex viewing BNCR (blimped new camera reflex) models. The procedure of converting models was done both prior to and after the 1967 introduction of the new BNCR model. Outside repair and camera modification shops also converted the BNC cameras for reflex viewing" (Laurence J. Roberts, "The Mitchell Camera : The Machine and its Makers", SMPTE Journal, vol. 91, n° 2, p. 148).

"Mitchell has designed an incomparable reflex system into the BNC. This is no makeshift conversion but was designed as an integral part of the time-tested BNC to give the film-maker every desired studio capability including zoom lens control. Features: 93 % reflective stainless-steel mirror alternates full light between reflex optics and film. Mirror and film shutter rotation engineered for dynamic balance and flicker-free film. Built-in power rectification for silent zoom lens controls and inside-housing illumination. Operating sound below 24 db at 36" from pickup microphone. Standard BNC operation and controls but without rack-over requirement" (American Cinematographer, September 1969, p. 911).

"The movement used in the BNC Sound Camera is of the eccentric trype. It has dual precision registering pins and provides a fast pull-down with a long dwell on the registration pins. The pull-down arm has two claws on each side and engages four perforations simultaneously. The pull-down claws and registration pins overlap, one entering befor the other disengages. Automatic viewfinder : parallaxe correction is accomplished by a system of cams. A set of cams, individually matched to the lenses used on the camera, is fitted under the finder. The cams not in use remain in this position, out of the way. The came for the lens in use is swung over to bear on a roller which moves on a helix fitted to the focusing control. The built-in cams match the standard range of lenses for 18 mm to 6 inches, calibrated from 18 inches to infinity. All BNC cameras can be supplied so that they can be used with interchangeable aperture plates, masks, locating plates and suitable ground glasses for any screen technique from CinemaScope to television production photography. [...] The Mitchell camera is made in two sections, the base frame and the camera box, each of which is cast in one piece from aluminium alloy" (brochure Mitchell BNC 35 mm Studio Camera, Glendale, Mitchell, 1966).

"The finest camera available for studio work, the Mitchell Studio Model (BNC) is truly silent, unequalled for ease of operation. No blimp is required, and all controls are readily accessible. [...] The Studio Camera's silent operation is due to perfect sound-insulation of the moving parts. This insulation is compactly designed so that the camera is much smaller and lighter than conventional blimped cameras. [...] One of the most impressive features of the Studio Camera (BNC) is its ease of focusing and smooth operation for follow-focus and dolly shots. Since no blimp is used, the focusing telescope eye-piece and controls are accessible at all times, and the telescope may be shifted into position in an instant for that quick last look. [...] The synchronous and interlocking motors are mounted directly on the right side of the camera. [...] The Sudtio Camera (BNC) motor drive is virtually identifcal with that on the Sound Camera (NC)" (Mitchell Motion Picture Cameras and Accessories Manufactured by Mitchell Camera Corporation, Glendale, Mitchell, s.d., p. 5-7).

"La Mitchell Camera Corporation est fondée en 1919 à Hollywood par George Alfred Mitchell. Elle propose entre 1920 et 1924 une caméra Model A en métal avec des perfectionnements dus à l'ingénieur John E. Leonard : visée sur dépoli par translation du mécanisme, tourelle à quatre objectifs avec filtres et caches interposés, iris déplaçable dans le cadre, obturateur d'ouverture 170° à fondu automatique, mécanisme à griffes et contre-griffes, débiteur à 32 dents déjà en usage dans la Bell & Howell 2719, mais modifié. Le chef opérateur Charles Rosher se sert du prototype pour The Love Fight (Frances Marion, 1921) avec Mary Pickford. L'appareil rencontre un vif succès à Hollywood et concurrence la Bell & Howell de Chicago. C'est une Mitchell que Stroheim emploie pour The Greed (1924). Fritz Lang et Karl Freund en utilisent deux pour Metropolis (1927) à Babelsberg. Un perfectionnement est apporté en 1925 avec le Model B : le mécanisme high speed pour les ralentis (128 images/seconde). La Mitchell, plus silencieuse que la Bell & Howell, devient la préférée des studios pour le tournage des films sonores à partir de 1927 ; il faut néanmoins l'enfermer dans un blimp, caisson insonorisé fabriqué sur mesure par la firme. En 1929, la Fox commande à Mitchell huit caméras Fox Grandeur pour film 65 mm, avec laquelle Raoul Walsh tourne The Big Trail. A partir de 1932, Mitchell construit pour Technicolor la caméra utilisant deux prismes et trois pellicules 35 mm. En 1932, une caméra NC (News Camera) est conçue. Elle contient un mécanisme d'entraînement silencieux d'une grande perfection, le NC eccentric movement. Ce système équipera toutes les caméras suivantes de la firme. En 1934, Mitchell fabrique la première BNC (Blimped Noiseless Camera), une caméra 35 mm mythique qui sera utilisée à partir de 1937 pendant plus de 30 ans dans tous les studios de cinéma. Gregg Toland, enthousiaste, tourne avec elle Citizen Kane d'Orson Welles (1939) ; Godard et Coutard la célèbrent dans Le Mépris (1963). Le seul défaut de la BNC reste son absence de visée reflex : la BNCR résout le problème en 1967. "85 % des films sont projetés dans le monde entier sont filmés par une Mitchell", proclame la firme. Des nouvelles usines édifiées à Glendale (Californie) sortent un projecteur pour transparence, des caméras 16 mm (1946), BFC 65 mm (1953), VistaVision (1954), Cinémiracle (1958), 35 portable reflex (1960), Todd-AO 65 mm (1963), 205-R (1973), Mark III (1973). Panavision rachètera le stock d'appareils" (Laurent Mannoni, La Machine cinéma, Paris, La Cinémathèque française, Liénart, 2016).



Bibliographie

Laurence J. Roberts, "The Mitchell Camera : The Machine and its Makers", SMPTE Journal, vol. 91, n° 2, p. 148.

"The Mitchell Hollywood's favorite studio camera", American Cinematographer, mars 1959, p. 174-197 ; mai 1959, p. 294-314.

"Report on a award-winning reflex conversion of the Mitchell BNC camera", American Cinematographer, septembre 1969, p. 858-860.
